Oil Yeller PA-007

For Horizontal Tank Installations

PA-007 Face

Peace of Mind for Horizontal Tank Installations

This tray is designed to capture leaks from tank failure, over filling, filter and connection leaks. This tray is typically installed under the tank during a new or tank replacement installation. The tank must be lifted into the tray.

Roth1500L

Application

  • Horizontally oriented oil storage tanks
  • Horizontal Granby/Vilco SWT models H150, H175 and H200
  • ROTH 1500 liter double wall tank

Specifications

  • Length: 111.6 cm / 43 15/16" (inside), 126.8 cm / 49 7/8" (outside)
  • Width: 162.6 cm / 64" (inside), 178 cm / 70 1/16" (outside)
  • Height: 8.8 cm / 3 7/16"
  • Containment Capacity: 155 L / 34.1 Imp. gal
Roth1500L
Fibreglass-horizontal

Installation

Installing a horizontal tank tray is easy, simply place the tank tray on the floor where the tank will be installed. Lift the tank. Place the tank into the tray and adjust to the final install position.

PA-007 Angled

Enhance Your Protection

Choose one of our two alarm models to monitor the system 24 hours a day. Alarms are simply velcro mounted onto any of our Oil Yeller trays.

PA-007 Angled

Product Documentation

Product Specification Sheet
Canada

Click the button below to download the specification sheet for our Canada designated product!

Product Specification Sheet
U.S.A.

Click the button below to download the specification sheet for our United States of America designated product!

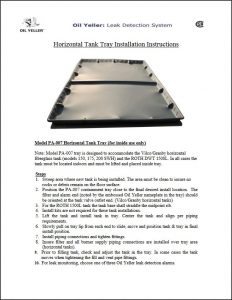

Installation Instructions for PA-007 Horizontal Tank Containment Tray

Download our easy one page installation instructions by clicking on the button below!
