Oil Yeller PA-002/PA-004

Narrow Containment Tray for Existing Installations

Narrow Tray Face On

Protection for New or Existing Installations

Install with a new tank or retrofit your existing tank with a Narrow Containment Tray and leak detection alarm.

This tray and alarm system is designed to capture leaks from tank corrosion failure, overfilling, filter and connection leaks.

Application

  • Place under standard 200 & 250 IMP Gallon (909 & 1136 litres) Canadian steel tanks = Model PA-002
  • Canadian tanks with angled legs = Model PA-002 or PA-004
  • Place under standard 275 & 330 US Gallon (UL80) steel tanks = Model PA-004
Capture PNG

Installation

Installing a retrofit narrow tray is easy. The tank does not require lifting. Simply slide the tray under the tank. Extend the tray under the filter. The tray may require some minor bending to allow it to go under the filter. Note:  Your tank must have four pipe legs as shown in the picture for this tray to work; if the tank is equipped with a cradle support this tray will not work. You will need to upgrade to a Wide Containment Tray for a cradle support type tank.

Capture PNG
Narrow Tray Angled

The Complete Package

Choose one of our two alarm models to monitor the system 24 hours a day. Alarms are simply velcro mounted on any of our Oil Yeller trays.

Product Documentation

Product Specification Sheet Canada

Click on the button below to download the specification sheet for our Canada designated product!

Product Specification Sheet U.S.A.

Click on the button below to download the specification sheet for our United States of America designated product!

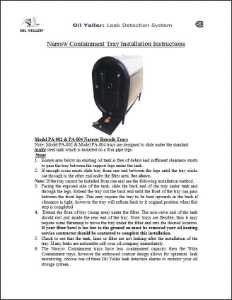

Installation Instructions for PA-002/PA-004 Narrow Tray

Download our easy 1 page installation instructions by clicking on the button below!

Narrow Containment Tray (PA-002/PA-004) Installation Video
